Grafton - House Plan
Grafton - House Plan
3 Beds, 2.5 Baths, 2580 SQ FT
76' Wide x 73' Deep
This charming 3 bedroom ranch home plan is all about the natural light and great layout.
- Faux dormers add tons of curb appeal to this classic farmhouse ranch.
- A deep front porch makes a perfect spot for dual porch swings.
- A U-shaped footprint allows a large rear porch that features an optional outdoor kitchen and bar setup.
- The charming kitchen features a huge window over the sink overlooking the side garden, and a walk-in pantry/scullery that has an additional sink and second dishwasher.
- A side entry mud porch next to the garage allows you a spot to kick off your shoes in built-in cubbies.
- The dining room features elegant arched openings to the great room and has an elevated 11ft tray ceiling.
- The great room has soaring 15ft ceilings to allow natural light in through three windows above the rear porch roof. The room centers in a fireplace flanked by built-in bookshelves.
- The primary bed suite and bathroom both feature vaulted ceilings. A luxurious walk-in shower and wardrobe complete the suite.
Terms + Conditions:
The Home Designer (Boutique Home Plans LLC) is not supervising the construction of this building. Therefore, the use of these drawings by the Owner, or any Contractor, Subcontractor, Builder, Tradesman, or Workman shall constitute a Hold Harmless Agreement between the drawing user and the home designer. The user shall in fact agree to hold the Building Designer and his associates harmless for any responsibility in regard to the construction means, methods, techniques, sequences, or procedures and for any safety precautions or programs in connection with the work.
Further, the Building Designer and his associates shall be held harmless against any liability of any kind whatsoever or any responsibility in regard to any costs or problems arising from the negligence of the Contractor, Subcontractor, Builder, Tradesman, or Workman. The use of these drawings also implies that the Building Designer and his associates shall assume no responsibility for the plan users failure to carry out the work in accordance with the drawings or the Contract Documents.
The Home Designer shall not have control over or charge of and shall not be responsible for construction means, methods, techniques, sequences or procedures, or for safety precautions and programs in connection with the work, since these are solely the Contractor(s)' responsibility. The Building Designer shall not have control over or charge of acts or omissions of the Contractor, Subcontractors, or their agents or employees, or any other persons performing portions of the Work. The Building Designer shall not be "in charge" of the Work. The Contractor shall waive any right to contribution and shall indemnify and hold harmless the Building Designer from and against all claims, damages, losses and expenses arising out of any negligent act or omission by the Contractor.
Customer recognizes and agrees that depending on site jurisdiction and conditions that may necessitate additional engineering such as wind, seismic, snow, floor or soil conditions. In addition some jurisdictions require a customer to obtain a stamp from a state licensed architect. These above named services are expressly not included in the Home Designer's services and product and will be the responsibility of the customer to obtain.
Refund + Exchange Policy:
Due to the nature of digital products, we do not accept returns. However, if the plan you purchased exceeds your build budget, we will exchange for a different plan (of equal or lesser value) for free. This option can only be exercised once per customer purchase.
Copyright + Reproducibility:
The plans listed and sold on this website are sold under a single use license and shall not be resold or reproduced in part or entirety. All plans are also covered by United States Copyright laws and shall not be copied or reproduced without the consent of Boutique Home Plans LLC.
3D Interactive Tour
Explore this floor plan in 3D.
Not Quite Perfect?
Learn how you can customize this plan in <5 days. (the other guys take 5+ weeks)
Finished Area: 2580 SF
Unfinished Area: 1330 SF
Garage Spaces: 2
Total Width: 76
Total Depth: 73
Exterior Framing: 2x6
Roof Framing: Stick or Truss
Building Code: IRC
Foundation: Slab; Crawl; Basement
Ceiling Height: 9ft (can vary)
Note: We recommend that all plans get reviewed by a structural engineer to optimize this house plan for local design conditions (site topography, soil conditions, snow loads, wind loads, & seismic loads).
What's Included?Sample Plan Set
PDF & CAD electronic copies of plans are emailed within 2 business days. If selected, Full-size printed copies of plans are printed and shipped once you sign-off on the PDF and take 2-3 business days to arrive.
The list below includes everything you need to hand off to your builder to get started:
➣Cover Sheet & General Notes
➣Foundation Plan (as selected)
➣Foundation Sections & Details
➣Reflected Ceiling Plan(s)
➣Finish Plan(s) & Interior Elevations

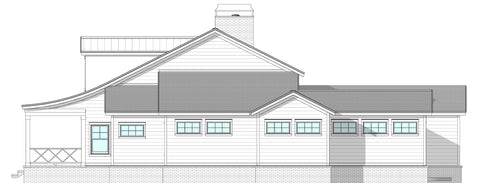

➣Exterior Elevations (all sides)
