Chestnut Farm - House Plan
Chestnut Farm - House Plan
3 Beds, 2.0 Baths, 1970 SQ FT
59' Wide x 66' Deep
The Chestnut is a great, affordable 3 bedroom ranch floor plan to build, featuring dual curved wrap around porches mirrored across a vaulted great room.
- The front wrap around porch is inviting with an architecturally curved corner and classic revival style.
- Inside the foyer, the vaulted living room opens up to the kitchen with optional exposed framing throughout.
- The kitchen features tons of windows for natural light, a sit-in island with range and full size pantry cabinets next to the refrigerator.
- A modest room to the front of the plan makes a great office or workout room.
- Off of the garage, a mud room with built-in cubbies offers direct access to the laundry room. The garage included a storage room, convenient mechanical room and optional side entry.

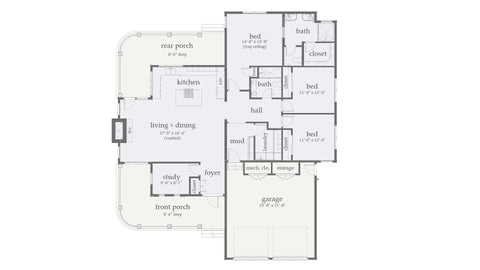

- The three bedrooms occupy the right rear of the house. The secondary bedrooms share a sizable bathroom. The primary bedroom enjoys an en-suite bathroom with a walk-in closet.
Terms + Conditions:
The Home Designer (Boutique Home Plans LLC) is not supervising the construction of this building. Therefore, the use of these drawings by the Owner, or any Contractor, Subcontractor, Builder, Tradesman, or Workman shall constitute a Hold Harmless Agreement between the drawing user and the home designer. The user shall in fact agree to hold the Building Designer and his associates harmless for any responsibility in regard to the construction means, methods, techniques, sequences, or procedures and for any safety precautions or programs in connection with the work.
Further, the Building Designer and his associates shall be held harmless against any liability of any kind whatsoever or any responsibility in regard to any costs or problems arising from the negligence of the Contractor, Subcontractor, Builder, Tradesman, or Workman. The use of these drawings also implies that the Building Designer and his associates shall assume no responsibility for the plan users failure to carry out the work in accordance with the drawings or the Contract Documents.
The Home Designer shall not have control over or charge of and shall not be responsible for construction means, methods, techniques, sequences or procedures, or for safety precautions and programs in connection with the work, since these are solely the Contractor(s)' responsibility. The Building Designer shall not have control over or charge of acts or omissions of the Contractor, Subcontractors, or their agents or employees, or any other persons performing portions of the Work. The Building Designer shall not be "in charge" of the Work. The Contractor shall waive any right to contribution and shall indemnify and hold harmless the Building Designer from and against all claims, damages, losses and expenses arising out of any negligent act or omission by the Contractor.
Customer recognizes and agrees that depending on site jurisdiction and conditions that may necessitate additional engineering such as wind, seismic, snow, floor or soil conditions. In addition some jurisdictions require a customer to obtain a stamp from a state licensed architect. These above named services are expressly not included in the Home Designer's services and product and will be the responsibility of the customer to obtain.
Refund + Exchange Policy:
Due to the nature of digital products, we do not accept returns. However, if the plan you purchased exceeds your build budget, we will exchange for a different plan (of equal or lesser value) for free. This option can only be exercised once per customer purchase.
Copyright + Reproducibility:
The plans listed and sold on this website are sold under a single use license and shall not be resold or reproduced in part or entirety. All plans are also covered by United States Copyright laws and shall not be copied or reproduced without the consent of Boutique Home Plans LLC.
3D Interactive Tour
Explore this floor plan in 3D.
Not Quite Perfect?
Learn how you can customize this plan in <48 hours. (the other guys take 4+ weeks)
Heated Area: 1970 SF
Unheated Area: 1185 SF
Garage Spaces: 2
Total Width: 59
Total Depth: 66
Exterior Framing: 2x6
Roof Framing: Stick or Truss
Building Code: IRC
Foundation: Slab; Crawl; Basement
Ceiling Height: 9ft (can vary)
Note: We recommend that all plans get reviewed by a structural engineer to optimize this house plan for local design conditions (snow loads, wind loads, & seismic loads).
What's Included?Sample Plan Set
PDF & CAD electronic copies of plans are emailed within 24 hours of payment. If selected, Full-size printed copies of plans are printed and shipped the same day.
The list below includes everything you need to hand off to your builder to get started:
➣Cover Sheet & General Notes
➣Foundation Plan (as selected)
➣Reflected Ceiling Plan
(includes electrical layout)

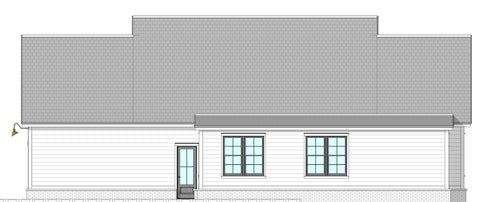

➣Exterior Elevation Plans (all sides)
