Barrington - House Plan
Barrington - House Plan
4 Beds, 3.5 Baths, 3660 SQ FT
78' Wide x 52' Deep
The Barrington is a large 4 bedroom modern house plan with a sleek modern design, this floor plan will attract lots of attention from friends and family.

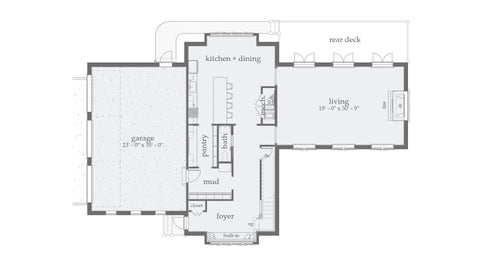

Stepping into the front foyer, a coat closet, access to the stairs and a long built-in bench for getting ready greet you. Beyond a door enters into the mud room, with it's built-in cubbies which connects the oversized three car garage, hallway and pantry. The hallway continues and provides a conveniently located half-bathroom, optional basement stair access and then finally direct access to both the kitchen and living room. Step first into the living room with its stunning 12ft ceiling, fireplace, floor to ceiling windows facing the front and triple French doors leading out to the rear deck or patio. This room connect back into the kitchen and dining room. The modern kitchen has everything you need with direct access to the pantry and a dining nook with tons of natural light.

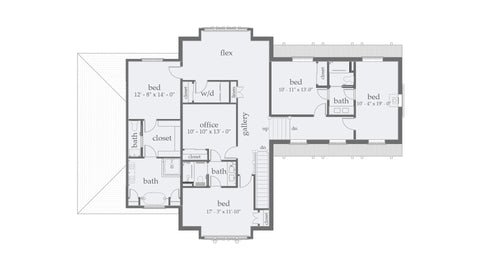

Upstairs, a wide gallery connects four bedrooms and three bathrooms. To the front, a bedroom and office space are connected through a Jack & Jill bathroom, laid out to maintain privacy with a closable partition between the washroom and the toilet & shower room. This same layout is mirrored on the two bedrooms in the East wing which is up an additional short set of stairs.
Finally, to the rear a lofted flex room, which is perfect as a fitness space or home office connects the laundry room and the primary bed suite. This bed suite features privacy and seclusion. In the bedroom a cove ceiling and double window look out over the back yard. A walk-through closet provides direct, convenient access to the toilet room. And finally a custom bathroom features a large shower, double vanity and freestanding bathtub centered on a window.
Terms + Conditions:
The Home Designer (Boutique Home Plans LLC) is not supervising the construction of this building. Therefore, the use of these drawings by the Owner, or any Contractor, Subcontractor, Builder, Tradesman, or Workman shall constitute a Hold Harmless Agreement between the drawing user and the home designer. The user shall in fact agree to hold the Building Designer and his associates harmless for any responsibility in regard to the construction means, methods, techniques, sequences, or procedures and for any safety precautions or programs in connection with the work.
Further, the Building Designer and his associates shall be held harmless against any liability of any kind whatsoever or any responsibility in regard to any costs or problems arising from the negligence of the Contractor, Subcontractor, Builder, Tradesman, or Workman. The use of these drawings also implies that the Building Designer and his associates shall assume no responsibility for the plan users failure to carry out the work in accordance with the drawings or the Contract Documents.
The Home Designer shall not have control over or charge of and shall not be responsible for construction means, methods, techniques, sequences or procedures, or for safety precautions and programs in connection with the work, since these are solely the Contractor(s)' responsibility. The Building Designer shall not have control over or charge of acts or omissions of the Contractor, Subcontractors, or their agents or employees, or any other persons performing portions of the Work. The Building Designer shall not be "in charge" of the Work. The Contractor shall waive any right to contribution and shall indemnify and hold harmless the Building Designer from and against all claims, damages, losses and expenses arising out of any negligent act or omission by the Contractor.
Customer recognizes and agrees that depending on site jurisdiction and conditions that may necessitate additional engineering such as wind, seismic, snow, floor or soil conditions. In addition some jurisdictions require a customer to obtain a stamp from a state licensed architect. These above named services are expressly not included in the Home Designer's services and product and will be the responsibility of the customer to obtain.
Refund + Exchange Policy:
Due to the nature of digital products, we do not accept returns. However, if the plan you purchased exceeds your build budget, we will exchange for a different plan (of equal or lesser value) for free. This option can only be exercised once per customer purchase.
Copyright + Reproducibility:
The plans listed and sold on this website are sold under a single use license and shall not be resold or reproduced in part or entirety. All plans are also covered by United States Copyright laws and shall not be copied or reproduced without the consent of Boutique Home Plans LLC.
3D Interactive Tour
Explore this floor plan in 3D.
Not Quite Perfect?
Learn how you can customize this plan in <48 hours. (the other guys take 4+ weeks)
Heated Area: 3660 SF
Unheated Area: 805 SF
Garage Spaces: 3
Total Width: 78
Total Depth: 52
Exterior Framing: 2x6
Roof Framing: Stick or Truss
Building Code: IRC
Foundation: Slab; Crawl; Basement
Ceiling Height: 9ft (can vary)
Note: We recommend that all plans get reviewed by a structural engineer to optimize this house plan for local design conditions (snow loads, wind loads, & seismic loads).
What's Included?Sample Plan Set
PDF & CAD electronic copies of plans are emailed within 24 hours of payment. If selected, Full-size printed copies of plans are printed and shipped the same day.
The list below includes everything you need to hand off to your builder to get started:
➣Cover Sheet & General Notes
➣Foundation Plan (as selected)
➣Reflected Ceiling Plan
(includes electrical layout)

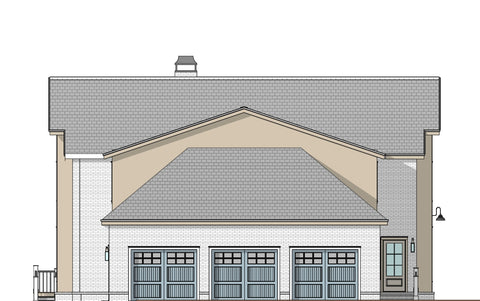

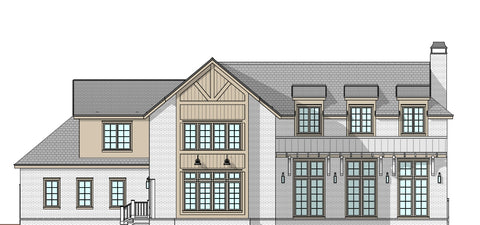

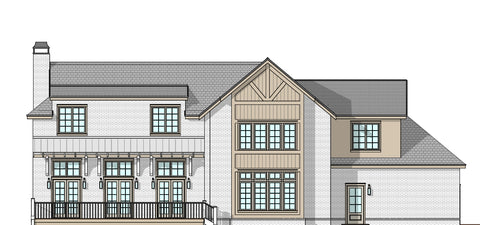

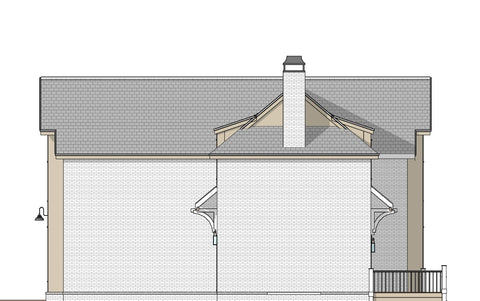

➣Exterior Elevation Plans (all sides)
➣Building Cross Sections
Let's Build TogetherAbout our Family
We're a US based family owned small business that designs & sells our plans exclusively. We work hard to deliver beautiful, functional house plans and useful tools for visualizing and building your home.
Our mission is to give you an abundance of proven designs so you’re not stuck with a design that you don’t love. (You’ll also save $10-20k+ over an architect which can add some pretty incredible upgrades to your new home!)
Unlike others, we are a full service company. We're here with the resources and customer support to empower you with the knowledge that you need to navigate this complex process.
Cost-to-Build:Build Cost Calculator
Get a detailed breakdown of the construction cost specific to this floorplan and your region with our advanced Cost to Build Calculator. Choose from 100+ parameters to see exactly what it will cost, so you can budget appropriately.
Cost to Heat & Cool:Energy Cost Calculator
Get a detailed breakdown of the energy costs specific to this floorplan and your region with our advanced Energy Cost Calculator. Choose from 16+ parameters to see exactly what it will cost, so you can budget appropriately.
Are these house plans to code & permit ready?
We design all of our plans to the current year release of the International Residential Code (IRC) which is the most widely adopted code.
However building code is administered at the local jurisdiction (there are estimated to be more than 20,000 jurisdictions in the US!).
Some locations require local site-specific structural engineering or a locally licensed architect to review and stamp plans. We always recommend hiring a structural engineer because optimizing your plan to the local site conditions can actually be a time and money saver.
Can I get a printed set of plans?
Since most towns are moving to a digital review process and contractors require a varying # of copies of printed plans, we don't offer this as an option anymore. Plans can be easily printed at your local large format printing store (Fedex, UPS Store, etc) for about $40-60/copy.
How are these plans guaranteed?
If the plan you purchased does not work out for any reason, we will exchange for a different plan for free. (limit one use per customer)
Because we design 100% of our house plans in-house, we are the only house plan design company that offers the benefit of a price guarantee!
Can I purchase the plans now and pay for modifications or add CAD files later?
Yes, not a problem.
What is the heated area and unheated area?
In short, the heated area is shaded blue/gray on the plans and the unheated area is beige.
The heated area always includes all enclosed living spaces, except for bonus rooms or attics.
The unheated area includes, garages, porches, attics and bonus rooms.
If selected, basement square footage is not included.
Can I change the materials?
The exterior and interior materials shown are just one possible option you can choose. In our construction drawings, the material is always annotated 'as specified by owner' so you are not locked into a specific material or pattern.
All materials are up to you, the owner, to pick out and specify to your contractor.
What size are the beds?
The beds shown are almost always a queen sized bed. In general, we size all primary bedrooms to fit a king sized bed and all secondary bedrooms to fit at least a queen.
Occasionally, when we put 2 beds in the same room they are double sized beds.
