Richmond Bay - House Plan

PLAN NO.:

24_034
Title
Foundation Options:
Modify this Plan:
Plan Options:
Title
$1,495.00

Modify this House Plan:

Make any changes to this plan for a flat fee in 5 business days.



Questions about what kinds of modifications are feasible? Just hit the chat button in the bottom right or email us and get a response from the home designer the same day.

Learn About Customization
Title

Floor Plan Description:

The Richmond Bay: A Stunning Modern Farmhouse with Expansive Living Spaces

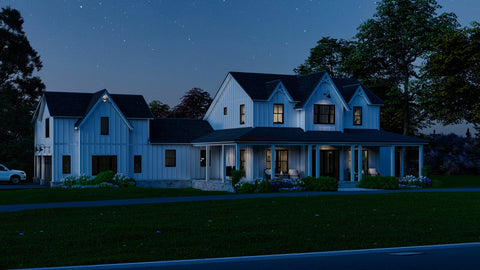

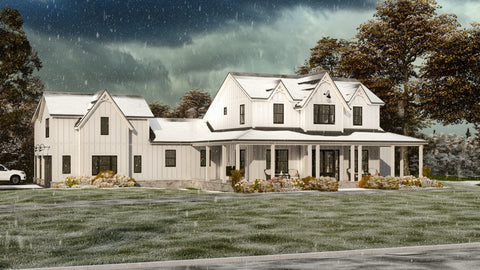

Welcome to The Richmond Bay, a breathtaking two-story modern farmhouse that effortlessly combines elegance and functionality. This home features a charming wrap-around porch and a spacious layout designed for both comfort and style.

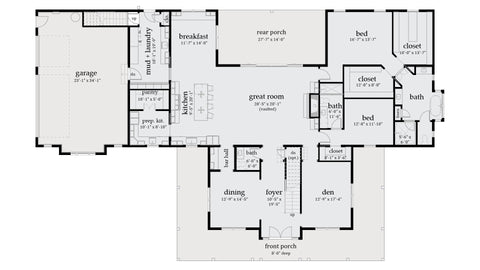

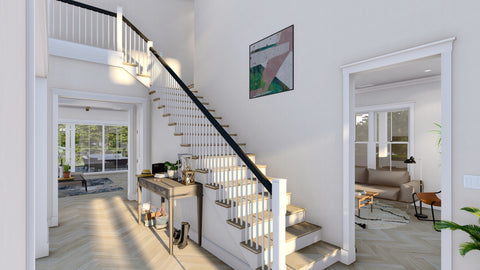

Entering through the impressive two-story foyer, you're greeted by a grand staircase that splits into two sections, leading to two upstairs bedrooms, each with its own full en-suite bathroom. To the left, the formal dining room is bathed in natural light from windows on two sides and connects to the kitchen via a bar hall. On the right, a versatile den offers flexible space to suit your family's needs. Beyond the foyer, a vestibule discreetly houses a half bathroom and provides access to either a closet or basement.

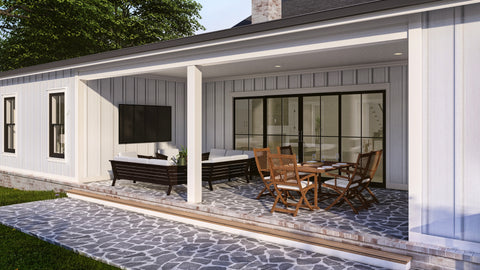

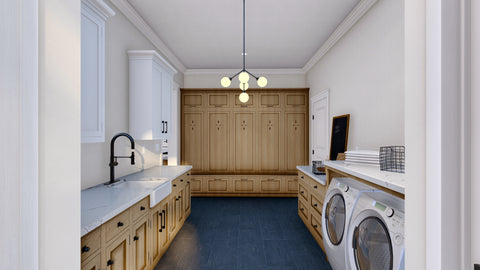

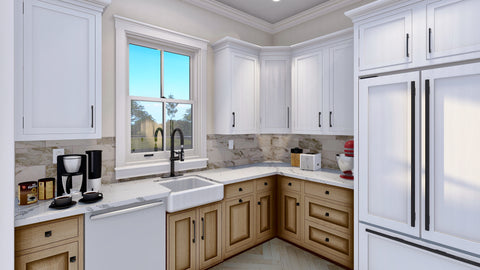

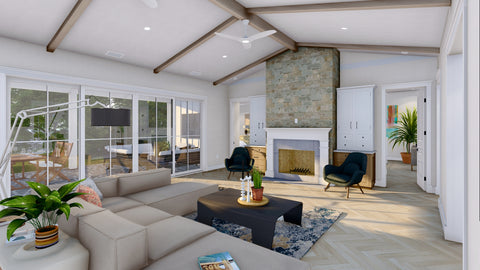

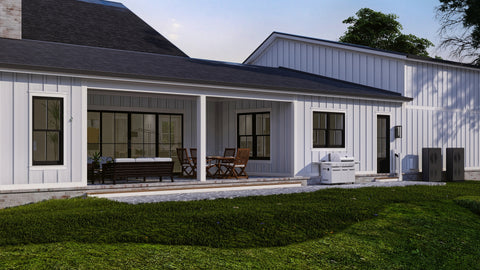

The heart of the home is the vaulted great room, featuring a 16-foot sliding glass door that opens to the rear porch, creating a seamless indoor/outdoor living experience. The great room is anchored by a gourmet kitchen, which is a chef's dream with a hidden full prep kitchen and a large walk-in pantry. Adjacent to the kitchen is a casual breakfast room, perfect for relaxed dining. A large mud and laundry room connects to the garage, offering direct access to the rear yard and stairs to a bonus room above.

On the right side of the plan, the luxurious primary suite and a secondary guest suite complete the main level. The primary suite boasts rear-facing windows, dual walk-in closets, and a spacious en-suite bathroom with separate vanities, a soaking tub, and a large shower.

The Richmond Bay is the epitome of modern farmhouse living, offering a harmonious blend of elegance, practicality, and comfort for your family.

  • 3D  Tour:

  • Video Tour:

  • Cost to Build:

Frequently Asked Questions:

What is the finished area and unfinished area?

The finished area is shaded blue/gray on the plans and the unfinished area is beige.



Finished area: All enclosed living spaces, except for bonus rooms or attics.



Unfinished area: garages, porches, attics and bonus rooms.



If selected, basement square footage is not included in the area calculation.

Feel free to contact us (chat link at bottom right) with any further clarifications or breakdowns for square footage.

How do the Foundation Options Work?

For a slab or crawlspace foundation, the area under the main stair area is typically delivered as a closet. Feel free to contact us if you have any questions!

For basement plans, the staircase access is under the main stair as shown on the floorplan. The basement plan is delivered as a blank slate in the same footprint as the conditioned first floor space. We're happy to help you layout a custom basement floor plan using our flat rate customization service.

Are these house plans to code & permit ready?

This is a complete set of architectural plans. We design all of our plans to the  International Residential Code (IRC / IBC) which is the most widely adopted code. However building code is administered at the local jurisdiction (there are estimated to be more than 20,000 jurisdictions in the US!). So there may be some subtle variations that need require adoptions.



We pride ourselves on our very detailed plans, and are constantly updating our house plans to ensure that they meet even the most stringent permit requirements. All house plans should be engineered. We recommend working with a locally licensed structural engineer to produce the correspond structural set and design calculations specific to your site.

Can I get a printed set of plans?

Yes, you can add any number of printed plan sets in the cart page for $40/ea shipped 3rd party.



Alternatively, plans can be easily printed at your local large format printing store (Fedex, UPS Store, etc) for about $50-70/copy.

Can I purchase the plans now and pay for CAD files or Prints later?

Yes, you can always add any of our additional services after the fact and we will make sure it gets to you.

Can I change the materials?

The exterior and interior materials shown are shown for visualization purposes only.

In our construction drawings, the material, finishes and appliances are 'as specified by owner' so you are not locked into a specific material or pattern.

All materials are up to you, the owner, to pick out and specify to your contractor.

What kind of modifications can be made?

Anything! We offer a flat rate modification service for only $400.

Some examples of common edits are:

  • Plan flipping/reversal
  • Moving interior / exterior walls
  • Moving or resizing doors or windows
  • Modifying a kitchen or bathroom layout
  • Adding plan notes or details
  • Changing façade details
  • Changing roof pitch
  • Adding accessibility features, like ramps, lifts or elevators
  • Changing exterior wall construction (2x4)
  • Basement layout or walk-out design

Feel free to reach out to us with your proposed edits before purchasing so that we can confirm feasibility.

hello@boutiquehomeplans.com

What kind of wall and roof framing?

All stock plan exterior walls, interior bearing walls and interior chase walls are designed with 2x6 construction. All other walls are 2x4 by default.

Wall framing can be modified as part of our flat rate modification process



The roof can be framed either as a truss or a stick-frame depending on the specific plan and your local live loads. Consult with your contractor to determine the best approach for your site and market.
